RT-Thread was born in 2006, it is an open source, neutral, and community-based real-time operating system (RTOS).

RT-Thread is mainly written in C language, easy to understand and easy to port(can be quickly port to a wide range of mainstream MCUs and module chips). It applies object-oriented programming methods to real-time system design, making the code elegant, structured, modular, and very tailorable.

RT-Thread has Standard version and Nano version. For resource-constrained microcontroller (MCU) systems, the NANO kernel version that requires only 3KB Flash and 1.2KB RAM memory resources can be tailored with easy-to-use tools; And for resource-rich IoT devices, RT-Thread can use the on-line software package management tool, together with system configuration tools, to achieve intuitive and rapid modular cutting, seamlessly import rich software packages, thus achieving complex functions like Android's graphical interface and touch sliding effects, smart voice interaction effects, and so on.

RT-Thread Architecture

RT-Thread has not only a real-time kernel, but also rich components. Its architecture is as follows:


It includes:

  • Kernel layer: RT-Thread kernel, the core part of RT-Thread, includes the implementation of objects in the kernel system, such as multi-threading and its scheduling, semaphore, mailbox, message queue, memory management, timer, etc.; libcpu/BSP (Chip Migration Related Files/Board Support Package) is closely related to hardware and consists of peripheral drivers and CPU porting.

  • Components and Service Layer: Components are based on upper-level software on top of the RT-Thread kernel, such as virtual file systems, FinSH command-line interfaces, network frameworks, device frameworks, and more. Its modular design allows for high internal cohesion inside the components and low coupling between components.

  • RT-Thread software package: A general-purpose software component running on the RT-Thread IoT operating system platform for different application areas, consisting of description information, source code or library files. RT-Thread provides an open package platform with officially available or developer-supplied packages that provide developers with a choice of reusable packages that are an important part of the RT-Thread ecosystem. The package ecosystem is critical to the choice of an operating system because these packages are highly reusable and modular, making it easy for application developers to build the system they want in the shortest amount of time. RT-Thread supports more than 370 software packages.

RT-Thread Features

  • Designed for resource-constrained devices, the minimum kernel requires only 1.2KB of RAM and 3 KB of Flash.

  • Has rich components and a prosperous and fast growing package ecosystem.

  • Elegant code style, easy to use, read and master.

  • High Scalability. RT-Thread has high-quality scalable software architecture, loose coupling, modularity, is easy to tailor and expand.

  • Supports high-performance applications.

  • Supports cross-platform and a wide range of chips.

Code Catalogue

RT-Thread source code catalog is shown as follow:

Name Description
BSP Board Support Package based on the porting of various development boards
components Components, such as finsh shell, file system, protocol stack etc.
documentation Related documents, like coding style, doxygen etc.
examples Related sample code
include Head files of RT-Thread kernel
libcpu CPU porting code such as ARM/MIPS/RISC-V etc.
src The source files for the RT-Thread kernel.
tools The script files for the RT-Thread command build tool.

RT-Thread has now been ported for nearly 200 development boards, most BSPs support MDK, IAR development environment and GCC compiler, and have provided default MDK and IAR project, which allows users to add their own application code directly based on the project. Each BSP has a similar directory structure, and most BSPs provide a README.md file, which is a markdown-format file that contains the basic introduction of BSP, and introduces how to simply start using BSP.


Supported Architectures

RT-Thread supports many architectures, and has covered the major architectures in current applications. Architecture and chip manufacturer involved:

  • ARM Cortex-M0/M0+:manufacturers like ST
  • ARM Cortex-M3:manufacturers like ST、Winner Micro、MindMotion, ect.
  • ARM Cortex-M4:manufacturers like ST、Nuvton、NXP、GigaDevice、Realtek、Ambiq Micro, ect.
  • ARM Cortex-M7:manufacturers like ST、NXP
  • ARM Cortex-M23:manufacturers like GigaDevice
  • ARM Cortex-M33:manufacturers like ST
  • ARM Cortex-R4
  • ARM Cortex-A8/A9:manufacturers like NXP
  • ARM7:manufacturers like Samsung
  • ARM9:manufacturers like Allwinner、Xilinx 、GOKE
  • ARM11:manufacturers like Fullhan
  • MIPS32:manufacturers like loongson、Ingenic
  • RISC-V:manufacturers like Hifive、Kendryte、Nuclei
  • ARC:manufacturers like SYNOPSYS
  • DSP:manufacturers like TI
  • C-Sky
  • x86

Supported IDE and Compiler

The main IDE/compilers supported by RT-Thread are:

  • RT-Thread Studio IDE
  • IAR
  • GCC

RT-Thread Studio IDE

User Manual | Tutorial Videos

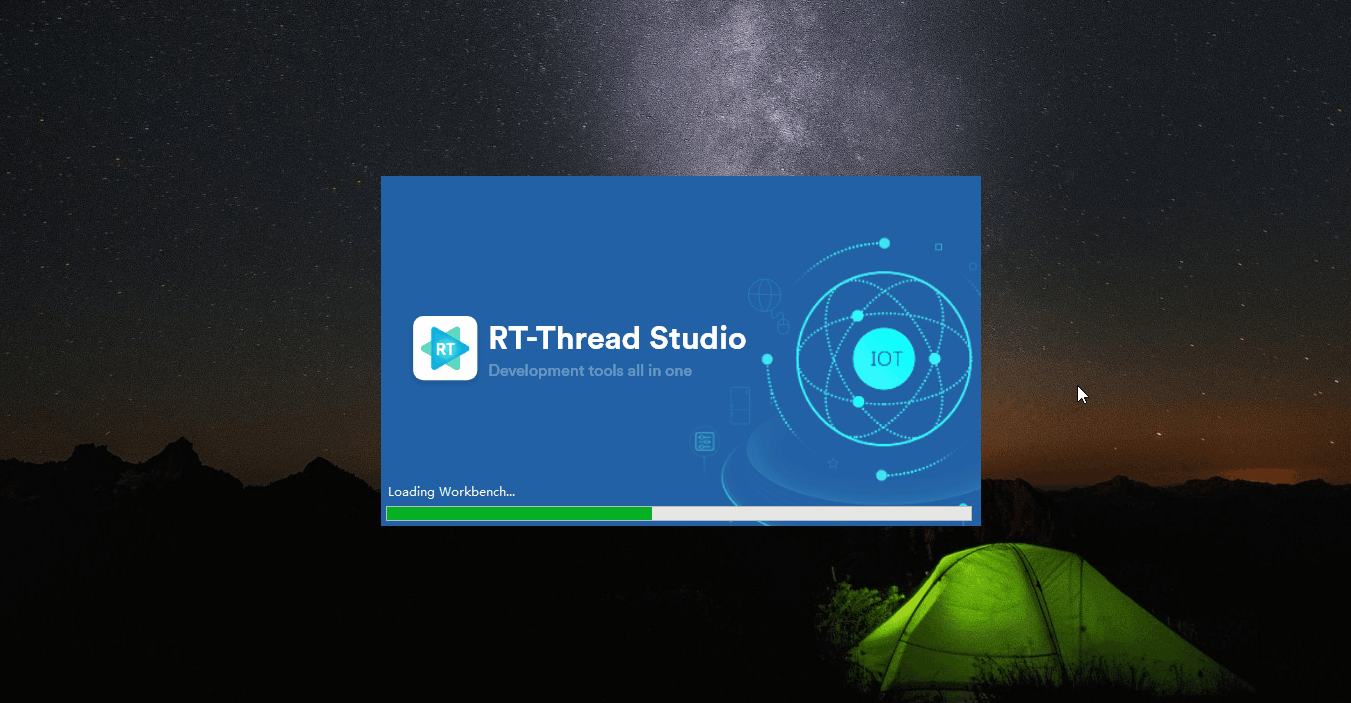

RT-Thread Studio IDE (a.k.a. RT-Studio) is a one-stop intergrated development environment built by RT-Thread team. It has a easy-to-use graphical configuration system and a wealth of software packages and components resources. RT-Studio has the features of project creation, configuration and management,as well as code editing, SDK management, build configuration, debugging configuration, program download and debug. We're looking to make the use of RT-Studio as intuitive as possible, reducing the duplication of work and improving the development efficiency.


Env Tool

User Manual | Tutorial Videos

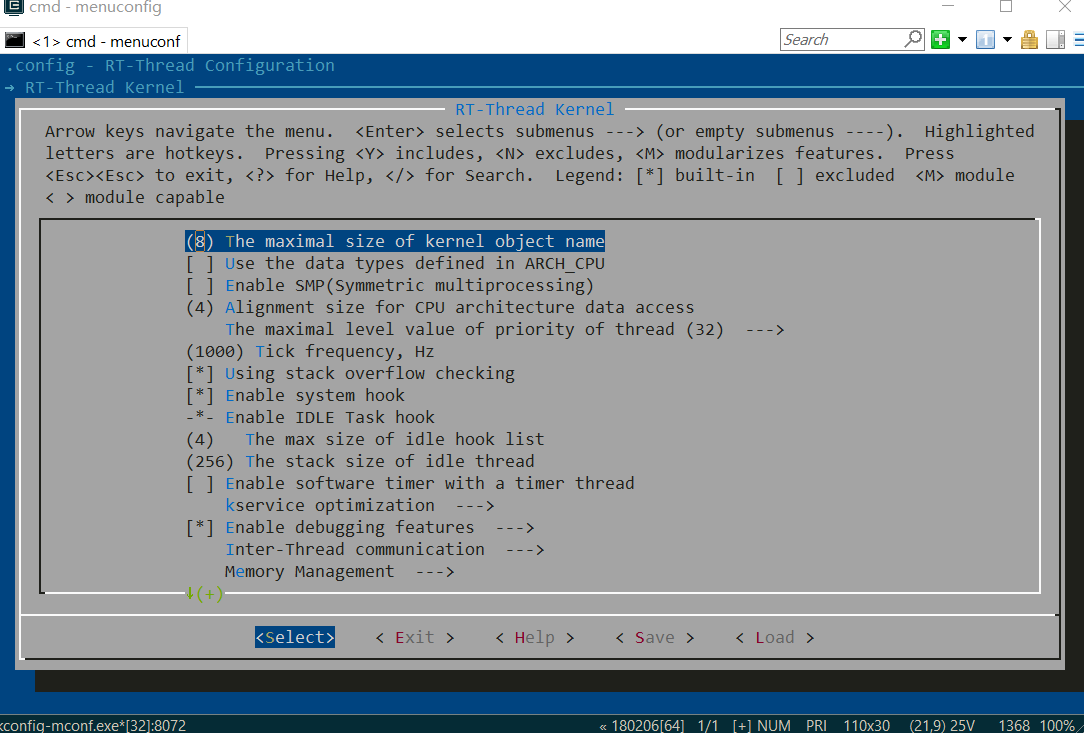

In the early stage, RT-Thread team also created an auxiliary tool called Env. It is an auxiliary tool with a TUI (Text-based user interface). Developers can use Env tool to configure and generate the GCC, Keil MDK, and IAR projects.


Getting Started

RT-Thread Programming Guide | RT-Thread Studio IDE | Kernel Sample | RT-Thread Beginners Guide

Based on STM32F103 BluePill | Raspberry Pi Pico


RT-Thread BSP can be compiled directly and downloaded to the corresponding development board for use. In addition, RT-Thread also provides qemu-vexpress-a9 BSP, which can be used without hardware platform. See the getting started guide below for details.


RT-Thread is an open source software and has been licensed under Apache License Version 2.0 since v3.1.1. License information and copyright information can generally be seen at the beginning of the code:

/* Copyright (c) 2006-2018, RT-Thread Development Team
 * SPDX-License-Identifier: Apache-2.0
 * ...


RT-Thread is very grateful for the support from all community developers, and if you have any ideas, suggestions or questions in the process of using RT-Thread, RT-Thread can be reached by the following means, and we are also updating RT-Thread in real time on these channels. At the same time, any questions can be asked in the issue section of RT-Thread repository or RT-Thread forum, and community members will answer them.

Website | Github | Twitter | LinkedIn | Youtube | Facebook | Medium


If you are interested in RT-Thread and want to join in the development of RT-Thread and become a code contributor,please refer to the Code Contribution Guide.

The main IDE/compilers supported by RT-Thread are:

  • IAR
  • GCC

Use Python-based scons for command-line builds.

Source Code and Tools

Get the source code: The source code of RT-Thread is hosted on Github, and click on the link to get the source code.

Get the Env Tool: To better help developers, the RT-Thread team also provides Env tools (or Env scripts for Linux/MacOS). On Windows, Env tool is a development assistant tool launched by RT-Thread. It provides compiling and building environment, graphical system configuration and software package management functions for project projects based on RT-Thread operating system. Its built-in menuconfig provides a simple and easy-to-use configuration tailoring tool, which can tailor the kernel, components and software packages freely, so that the system can be built in the way of building blocks.

Getting Started

RT-Thread BSP can be compiled directly and downloaded to the corresponding development board for use. In addition, RT-Thread also provides qemu-vexpress-a9 BSP, which can be used without hardware platform. See the getting started guide below for details.


Any questions can be asked in the issue section of rtthread-manual-doc. By creating a new issue to describe your questions, community members will answer them.


If you are interested in RT-Thread and want to join in the development of RT-Thread and become a code contributor,please refer to the Code Contribution Guide.
